SERIES 2400 PANEL SYSTEM

STRUCTURAL SYSTEM FOR COMMERCIAL AND INSTITUTIONAL

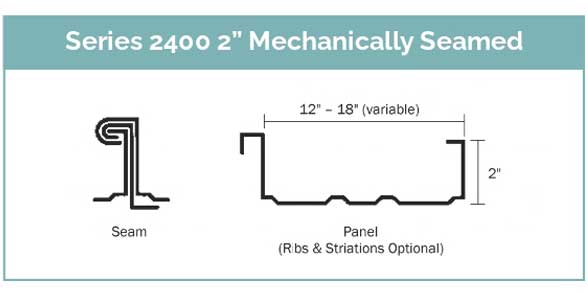

2” STRUCTURAL AND ARCHITECTURAL MECHANICALLY PANEL SYSTEM

Designed for use as a structural roof system for pre-engineered buildings and open framing. Englert’s Series 2400 mechanically seamed, single-lock panel is one of the industry’s most extensively utilized systems. The 2400 profile incorporates a unique heavy duty interlock clip that secures the system while allowing thermal expansion and contraction.

SYSTEM APPLICATIONS

  • Heavy duty for commercial and industrial use
  • 1/2”/12” minimum slope
  • Can be installed over a solid deck or open framing
  • Requires seam sealant if air and water tests are specified
  • Engineering available for various panel sizes and substrates upon request

SUBSTRATES

  • 22 and 24 gauge steel
  • .032” and .040” aluminum
  • 16 oz. and 20 oz. copper

FINISHES

Englert’s Series 2400 system is available in a wide variety of
coatings and colors. See the Englert color card for our full
range of standard colors and paint system specifications.

Englert can match the color of virtually any material –
including brick, wood and fabric – with short lead times as
needed. Custom colors are available in quantities as low as
5,000 lbs. on steel or aluminum.

SYSTEM WARRANTIES

  • Galvalume Plus® – 25-year steel warranty on acrylic coated Galvalume®
  • PermaColor 3500 – 35-year steel or aluminum warranty on Kynar 500®/Hylar 5000® coating
  • PermaMetallic 3500 – 20-year steel or aluminum warranty on Kynar 500®/Hylar 5000® coating
  • Siliconized Modified Polyester – 15-year steel or aluminum coating warranty

RATINGS AND CERTIFICATIONS

  • UL-90 rated over 16 gauge steel purlins at 18” wide with clips at 48” o.c. (24 ga. steel)
  • UL-90 rated over 16 gauge steel purlins at 16” wide with clips at 60” o.c. (24 ga. steel)
  • ASTM-E-1646-95 and ASTM-E-331 water penetration tested
  • ASTM-E-1680-95 and ASTM-E-283 air infiltration tested
  • ASTM-E-1592-98 uplift tested (24 ga. steel)
  • ASTM-E-84 Class A fire rating on coating and substrate

Resources

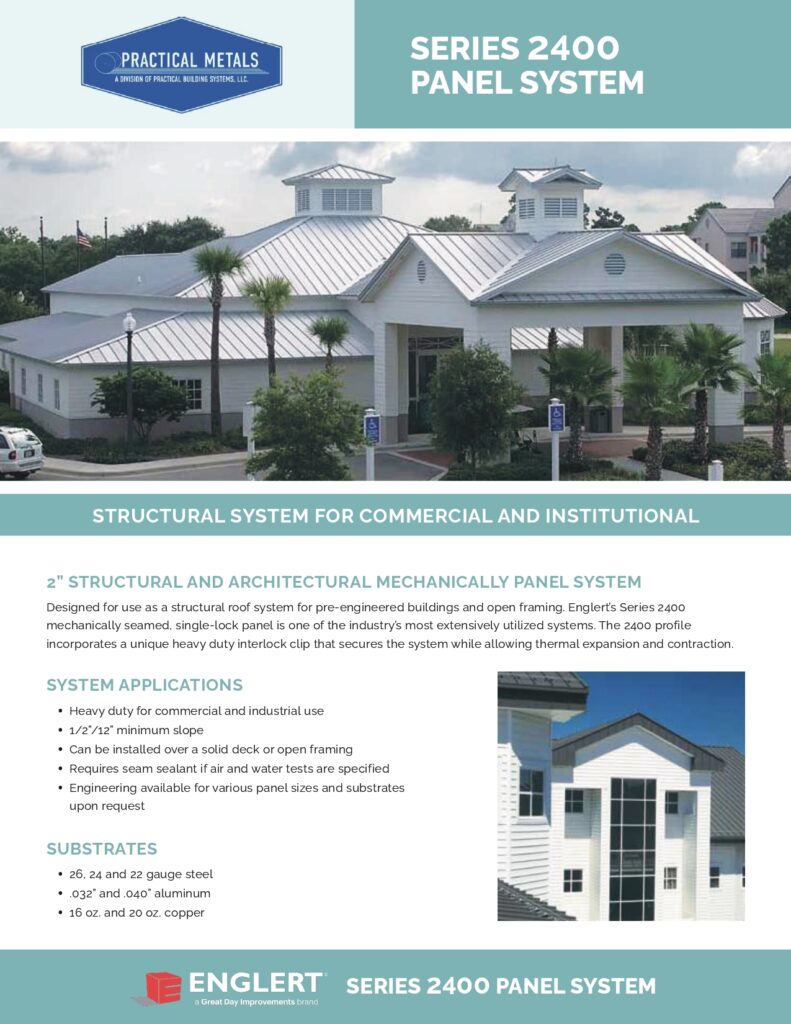

Download PDF
Allowable Uniform Live Load (PSF)
No. of Spans 4'-0" 4'-6" 5'-0" 5'-6" 6'-0"
14” Width — 24 ga. steel
2 107 84 68 57 47
3 or more 132 105 85 70 59
14” Width — 22 ga. steel
2 135 107 86 71 60
3 or more 169 133 108 89 75
18” Width — 24 ga. steel
2 84 66 53 44 37
3 or more 104 82 67 55 46
18” Width — 22 ga. steel
2 105 83 67 55 46
3 or more 131 104 84 69 58
Note: Load values shown may be increased by 1/3 for allowable wind load.
