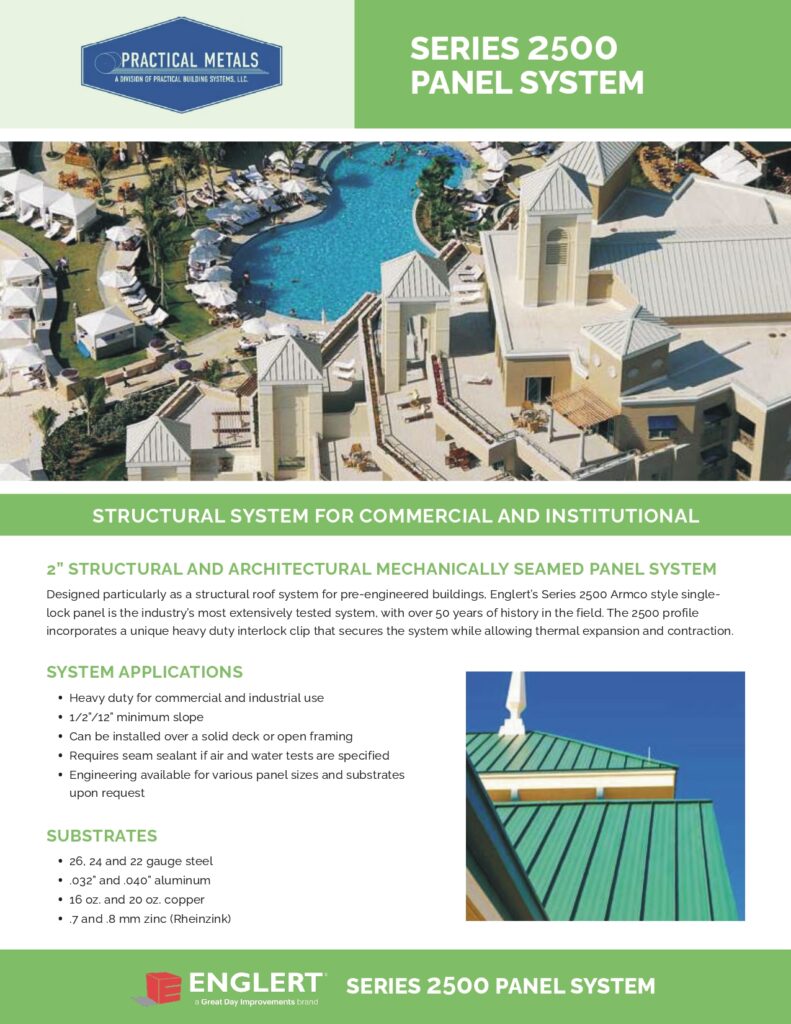

SERIES 2500 PANEL SYSTEM

STRUCTURAL SYSTEM FOR COMMERCIAL AND INSTITUTIONAL

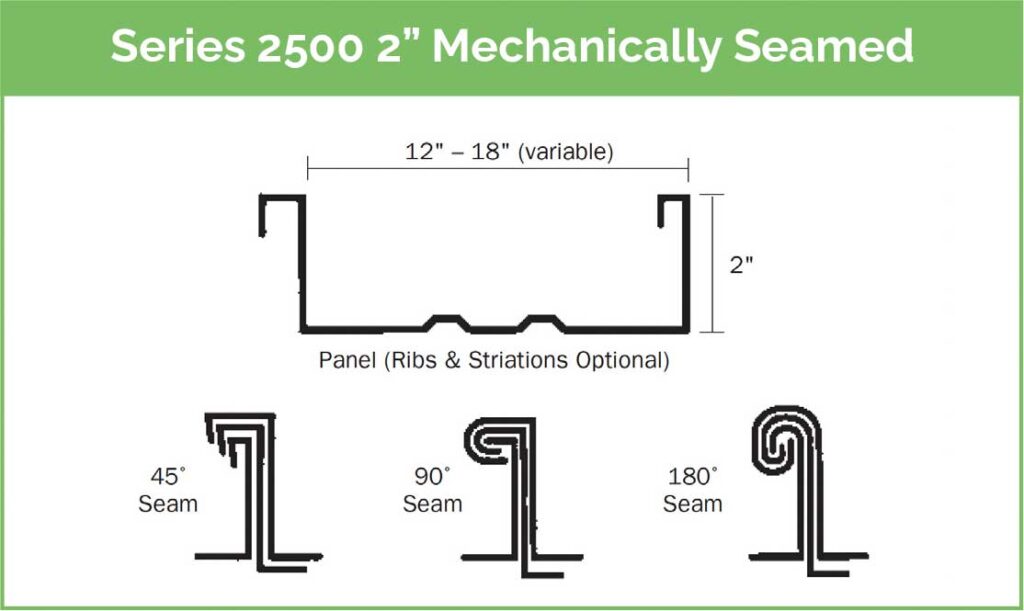

2” STRUCTURAL AND ARCHITECTURAL MECHANICALLY SEAMED PANEL SYSTEM

Designed particularly as a structural roof system for pre-engineered buildings, Englert’s Series 2500 Armco style singlelock panel is the industry’s most extensively tested system, with over 50 years of history in the field. The 2500 profile incorporates a unique heavy duty interlock clip that secures the system while allowing thermal expansion and contraction.

SYSTEM APPLICATIONS

  • Heavy duty for commercial and industrial use
  • 1/2”/12” minimum slope
  • Can be installed over a solid deck or open framing
  • Requires seam sealant if air and water tests are specified
  • Engineering available for various panel sizes and substrates upon request

SUBSTRATES

  • 24 and 22 gauge steel
  • .032” and .040” aluminum
  • 16 oz. and 20 oz. copper
  • .7 and .8 mm zinc (Rheinzink)

FINISHES

Englert’s Series 2000 system is available in a wide variety of
coatings and colors. See the Englert color card for our full
range of standard colors and paint system specifications.

Englert can match the color of virtually any material –
including brick, wood and fabric – with short lead times as
needed. Custom colors are available in quantities as low as
5,000 lbs. on steel or aluminum.

SYSTEM WARRANTIES

  • Galvalume Plus® – 25-year steel warranty on acrylic coated Galvalume®
  • PermaColor 2000 – 30-year steel or aluminum warranty on Kynar 500®/Hylar 5000® coating
  • PermaMetallic 2000 – 20-year steel or aluminum warranty on Kynar 500®/Hylar 5000® coating
  • Siliconized Modified Polyester – 15-year steel or aluminum coating warranty

RATINGS AND CERTIFICATIONS

  • UL-90 rated over 22 gauge metal deck at 16” wide with clips at 30” o.c. (24 ga. steel)
  • UL-90 rated over 16 gauge purlins at 16” wide with clips at 60” o.c. (24 ga. steel)
  • ASTM-E-1646-95 and ASTM-E-331 water penetration tested
  • ASTM-E-1680-95 and ASTM-E-283 air infiltration tested
  • ASTM-E-1592-98 uplift tested (24 and 22 ga. steel, .040” aluminum)
  • ASTM-E-84 Class A fire rating on coating and substrate (24 ga. steel)
  • FM-I90 rated over 16 gauge purlins at 16” wide with clips at 60” o.c. (24 ga. steel)

Resources

Download PDF
Allowable Uniform Live Load
No. of Spans 4’-0” 4’-6” 5’-0” 5’-6” 6’-0”
14” Width — 24 ga. steel
2 79 62 50 41 34
3 or more 92 72 58 48 40
14” Width — 22 ga. steel
2 110 87 70 58 48
3 or more 129 102 82 68 57
16” Width — 24 ga. steel
2 69 54 44 36 30
3 or more 80 63 51 42 35
16” Width — 22 ga. steel
2 97 76 61 51 42
3 or more 113 89 72 59 50
18” Width — 24 ga. steel
2 61 48 39 32 27
3 or more 71 56 45 37 31
18” Width — 22 ga. steel
2 86 68 55 45 37
3 or more 100 79 64 53 44
Note: Load values shown may be increased by 1/3 for allowable wind load.
