Commercial Industrial Wall Panel Systems

Commercial/ industrial wall panel systems


Englert offers a wide range of traditional
concealed and thru-fastened wall panel systems
that can be installed horizontally or vertically
for all kinds of commercial and industrial use.
our commercial-industrial systems are available
in a wide range of colors all in a Kynar 500®
paint finish that meet specific aesthetic and
corrosion resistance requirements. architects and
builders can choose from a variety of englert’s
economical and durable wall panel systems,
suitable for use in pre-engineered metal building
applications, agricultural structures, commercial
buildings, and industrial buildings

PRODUCT*

Commercial/Industrial
ASTM
E-283
ASTM
E-330
ASTM
E-331
ASTM
E-84
Paint
Performance
Specs
FBC
H-12/3
H-16/4
A-4000 CF
2.67” x .5”
2.67” x .875”
Uniline R
Uniline RW
Uniline C-36
Uniline 4.2
*Contact Englert for specific materials tested, test parameters and limitations of each product before specifying from this chart.

CONCEALED FASTENER | HORIZONTAL SERIES

H-12/3

the englert H-12/3 is a 12″ coverage panel, 7/8″ deep with three ribs uniformly spaced ideal for architectural, commercial and industrial applications demanding a bolder surface appearance.

H-16/4

the englert H-16/4 is a 16″ coverage panel, 7/8″ deep with four ribs uniformly spaced to create a bolder surface appearance for architectural, commercial and industrial applications

CoNCEalEd FastENEr | CF SERIES

A4000 CF

the series a4000 flush interlocking wall panel system provides consistently smooth wall surfaces. unobtrusive vertical seams with concealed integral fasteners are secured without the need for additional clips or mechanical seaming. optional stiffeners are recommended for lighter gauge material. the panels also may be detailed in combination with insulation to produce an insulated siding system.

EXPosEd FastENEr | UNILINE SERIES

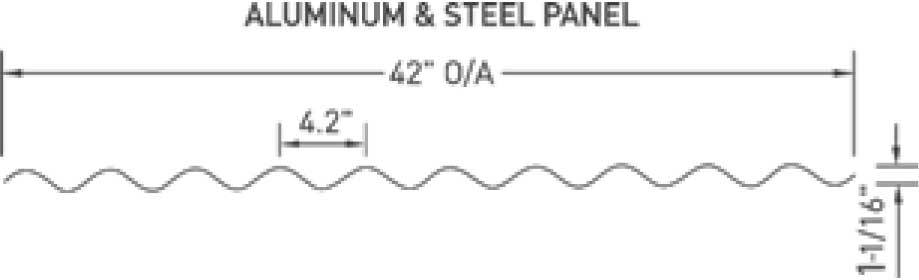

UNILINE 4.2 RIb

the uniline 4.2 rib wall panel is a traditional 1 1/16″ deep 4.2 symmetrical ribbed wall panel. typically used in an industrial application, these wall panel systems are ideal for use in retrofit applications on older buildings replacing cement siding and other outdated panel systems.

UNILINE C-36 7.2 RIb

the uniline C-36 wall panel is 1.5″ deep with symmetrically spaced ribs at 7.2″ on center making it ideal for use in a variety of applications. uniline C-36 wall panels have a trapezoidal profile and can be installed either vertically or horizontally for a more dramatic effect, particularly in architectural applications.

UNILINE R

the uniline “r” wall panel system, the staple of the metal building industry, combines strength with a deep, wide panel profile for a clean, bold look. the wall panel is easy to install and is designed for maximum durability. available in all englert standard Kynar® colors.

UNILINE RW

the uniline “rw” wall panel is a semi-concealed fastener wall panel system that combines form and function. with its recessed channels housing its fasteners, the “rw” creates a smooth, flat wall appearance. this durable wall panel system is a good choice for standard wall applications where architectural detail is important. the “rw” wall panel provides a striking wainscoated architectural effect.

EXPOSED FASTENER | CORRUGATED SERIES

all 2.67″ corrugated wall panel systems are specifically designed for use in industrial applications, where strength and durability are important. with a deeper corrugation, these panels provide increased load carrying capacity and add heavier shadow lines for a more dramatic appearance.

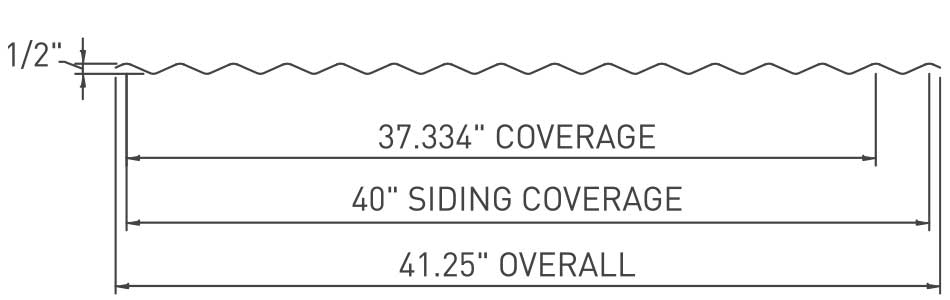

2.67" x .5"

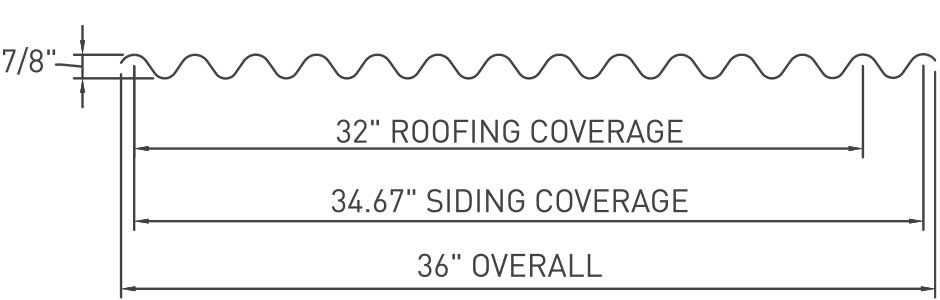

2.67" x .875"

ENGLERT: SOLUTIONS THAT STAND THE TEST OF TIME

ENGLERT IS DISTINCTIVE FOR ITS ABILITY TO provide you with a broad range of wall panel systems for a wide variety of design purposes.

All Englert wall panel configurations are energy star-compliant with low gloss full strength Kynar 500 finishes. englert’s commercial/industrial wall panel systems feature a wide range of traditional concealed and thru-fastened wall panel configurations that can be installed horizontally or
vertically for all kinds of commercial and industrial applications

we offer one of the widest ranges of metal building product solutions in the industry, with all the wall panel profiles,
finishes, textures, architectural details and structural options your design would require. for more information on all of
englert’s wall panel systems go to www.englertinc.com.

COMMERCIAL/INDUSTRIAL

Concealed & Exposed Fastener WALL PANEL SYSTEMS

WALL PANEL KYNAR-COATED STANDARDS IN STOCK

COLORS STEEL ALUMINUM
22g 24g 26g .032 .040
Galvalume Plus NA NA
Burgundy
Bone White
Charcoal Gray
Colonial Red
Dark Bronze
Dove Gray
Deep Red
Everglade Moss
COLORS STEEL ALUMINUM
22g 24g 26g .032 .040
Forest Green
Hartford Green
Hemlock Green
Mansard Brown
Medium Bronze
Mill Finish (Aluminum) NA NA NA
Matte Black
Pacific Blue
Patina Green
